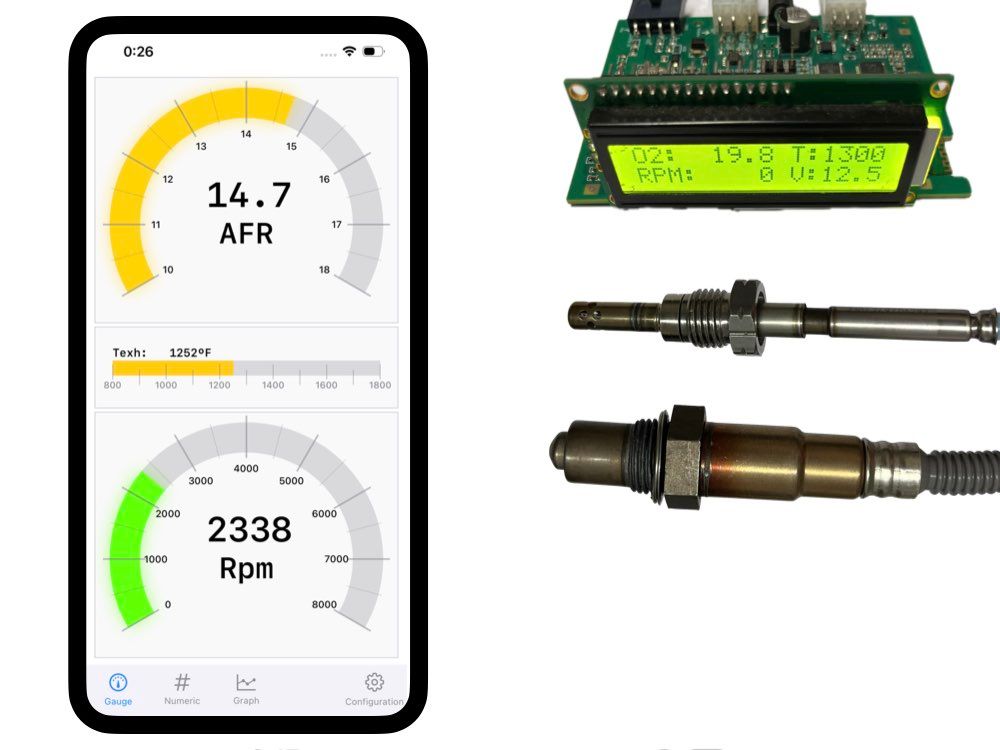

What it measures: %O₂, Lambda and AFR (air–fuel ratio), RPM, exhaust gas temperature (up to 1000 °C) and battery voltage.
Plug-and-play: ready to use, just connect power and sensors. It works on its own with its LCD screen and the app, with no need for Arduino —but it is fully compatible with Arduino over the SPI bus, through the "Lambda_tuning.h" library, if you want to integrate it into a project.
"Controlduino: Lambda-tuning" app (iOS and Mac; Android coming soon): multi-device (up to 8 at once), customizable, displays data in real time, logs it and graphs it, and lets you export values as CSV and graphs as PDF.
Suitable for combustion engines, burners, boilers, stoves and any exhaust gas control application.
Included:
- Wideband lambda sensor control module. Controlduino 01D21V00
- App (free download) — iOS and Mac; Android coming soon
- Power conector Jack 5.5*2.1mm, 250mm
- Lambda sensor connector cable, 250mm.
- Sensor EGT connector cable, 250mm.//Mejor con extra, junto al sensor o separado
- RPM connector cable, 250mm.
Build your kit:
Select the components you need: See the photos to view what each option includes.
- Optional 1: Wideband lambda sensor, OEM: 0258017025.
- Optional 2: Temperature Sensor Bosch EGT_PT200E.
- Optional 3: LCD Display 1602 with SPI interface.
Some of these products may be needed, depending on the installation
- 220 AC/DC power supply with EU connector.
- Lambda sensor threaded bushing. M18x1.5. sleeve.

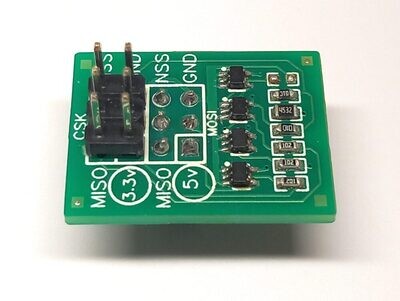

- Logic level shifter for SPI, 3.3 V ↔ 5 V. Only needed with 3.3 V Arduino boards.
More information on website https://controlduino.com/lambda-rpm-egt-module-01d21v00/
If shipping to your country is not enabled, send an email to jm@controlduino.com.
