Product overview

Description

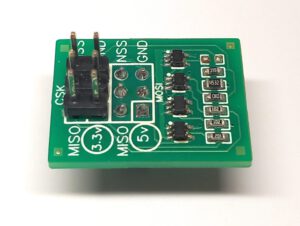

The module has been designed to enable SPI communications of the lambda modules with 3.3V Arduino boards.

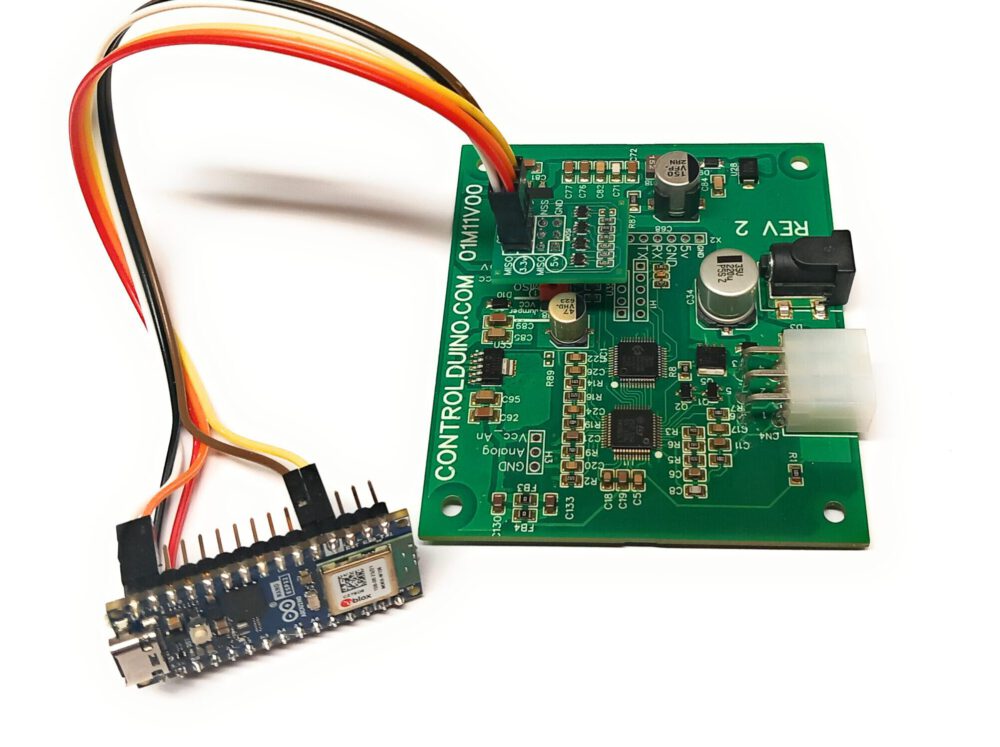

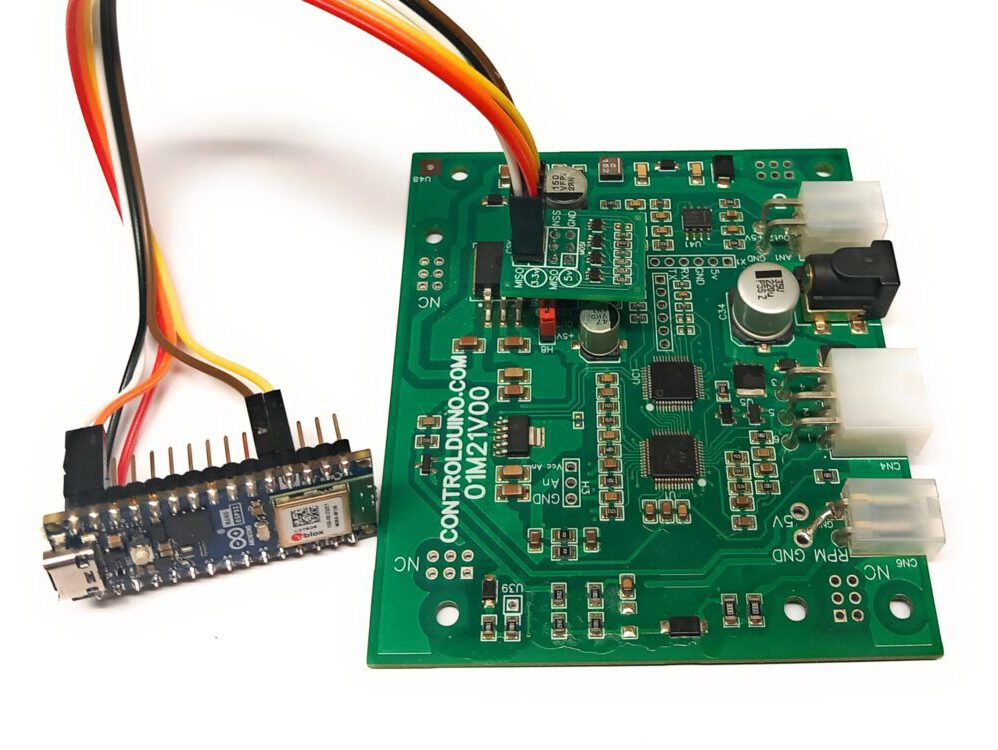

The module is stacked on the lambda module and the connection cables to the arduino board will be connected to it.

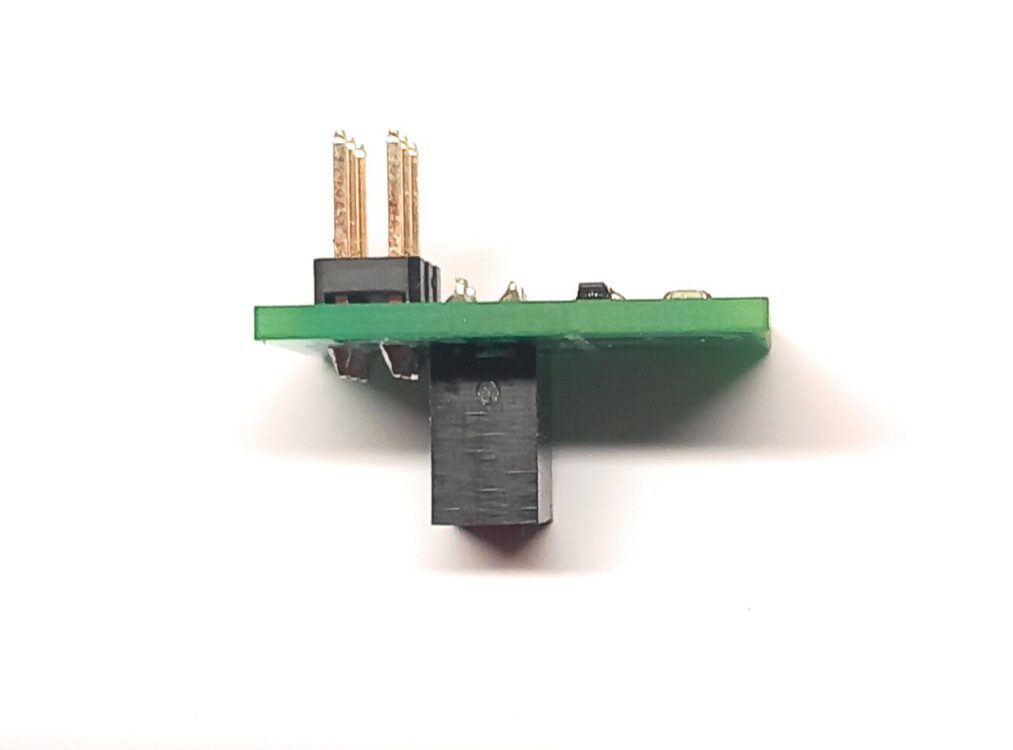

Changing the connector from a 2×3 female connector to a male one, you could easily separate the voltage adapter from the module, by means of a 2×3 cable.

All features

• Allows operation on a SPI bus with multiple slaves, when the slave selector has 5V the MISO connection is in high impedance.
• Compatible with lambda modules.
  • 01M11V00. Wideband lambda module.
  • 01M21V00. Wideband lambda module with rpm.
  • 01M30V00. Double wideband lambda module with rpm and 3 analog inputs.
  • Others.
• Compatible with 3.3 V Arduino boards via 3.3-5 V SPI adapter.
  • Arduino Nano. (SPI comunication, with SPI adapter.)
  • Others, compatible but not tested.
• Compatible with any use of Arduino or similar that requires a voltage change on an SPI bus between 5 and 3.3V, with a 3.3V master.

Examples and libraries of functions

The lambda module libraries “Lambda.h“,”Lambda_rpm.h” and “LambdaX2_rpm.h” are valid for 3.3V Arduino boards if the voltage change on the SPI bus is adapted with this module. The examples of the lambda modules can be used on 3.3V arduinos, except for those using non 3.3V compatible components such as the 5V I2C display used in some examples.

To download the libraries and examples go to the web page corresponding to the lambda module used.
